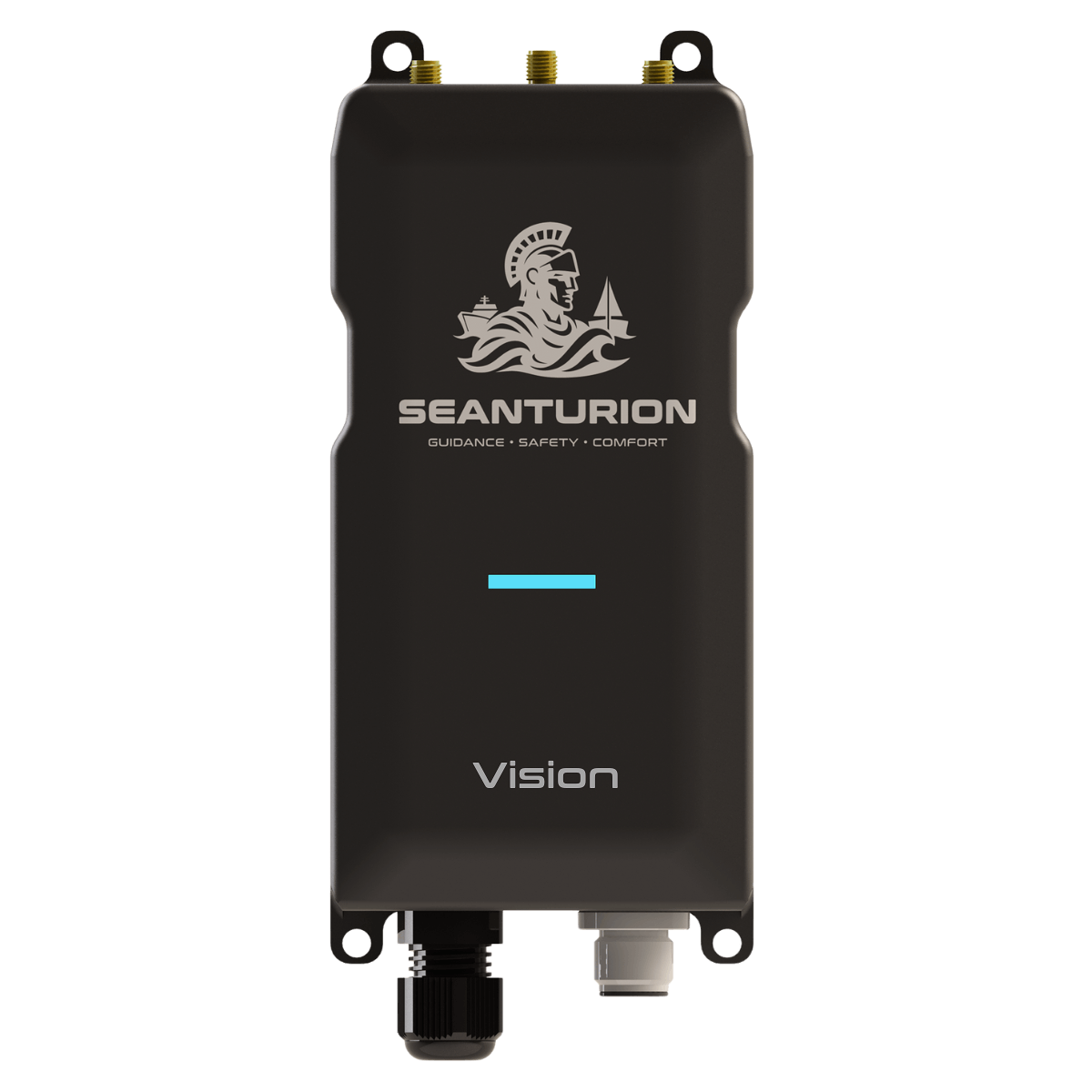

Vision Hub Device with Iridium
1.325,00 € excl. VAT
Device “Vision” is an advanced telematics terminal based on the Edge Hub, enhanced with Iridium satellite modem support for global connectivity. It combines LTE/2G, Wi-Fi, Bluetooth and Iridium to ensure reliable monitoring and communication anywhere in the world.
Available Soon
Description
Description
Device “Vision” is built upon the proven functionality of the Edge Hub by adding Iridium satellite communication, enabling global coverage beyond cellular networks. With dual Nano-SIM slots, external GNSS antenna, 4 GB of eMMC memory and an archive capacity of up to 2.5 million points, it provides reliable long-term operation and secure data storage.
The Vision integrates multiple interfaces including RS485, RS232, CAN and 1-Wire for seamless connection with sensors and equipment. It supports Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 for local wireless integration, while Iridium ensures connectivity even in the most remote maritime and industrial environments.
With 6 inputs, 4 outputs, an onboard accelerometer and a 600 mAh backup battery, the Vision is designed for robust operation in critical applications. It is the ideal solution for global fleet management, maritime operations and IoT systems requiring uninterrupted worldwide communication.
Technical Specifications
Additional information
| Dimensions | 9,90 × 6,65 × 2,55 cm |
|---|---|
| Antenna type | External |
| eMMC memory | 4 GB |
| Archive size | up to 170.000 points (flash), up to 2.500.000 points per 1 GB (eMMC) |
| RS485 | 1 |
| RS232 | 1 |
| 1-Wire | 1 |
| CAN | 2 |
| Bluetooth | 5.0 |
| Wi-Fi | 802.11 b/g/n |
| Satellite Connectivity | Iridium modem for global coverage |
| Inputs | 6 |
| Outputs | 4 |
| Cellular Network | 2G / LTE (2G/3G/4G) |
| SIM | 2 Nano |
| Buit-in battery | 600 mAh |
| Accelerometer | + |
| Autoinformer | + |
| Voice communication | + |
| Dimensions (mm) | 99×66.5×25.5 |
