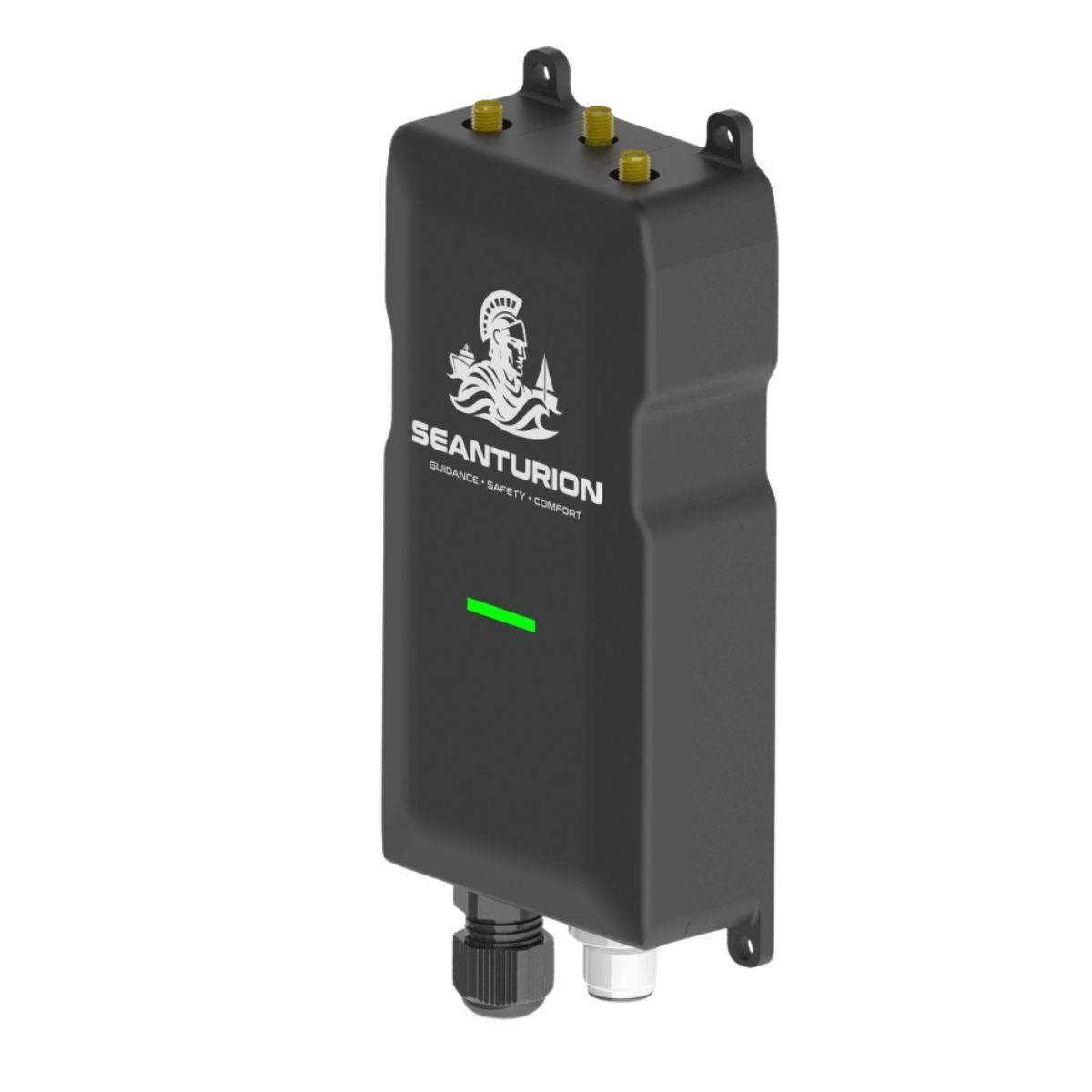

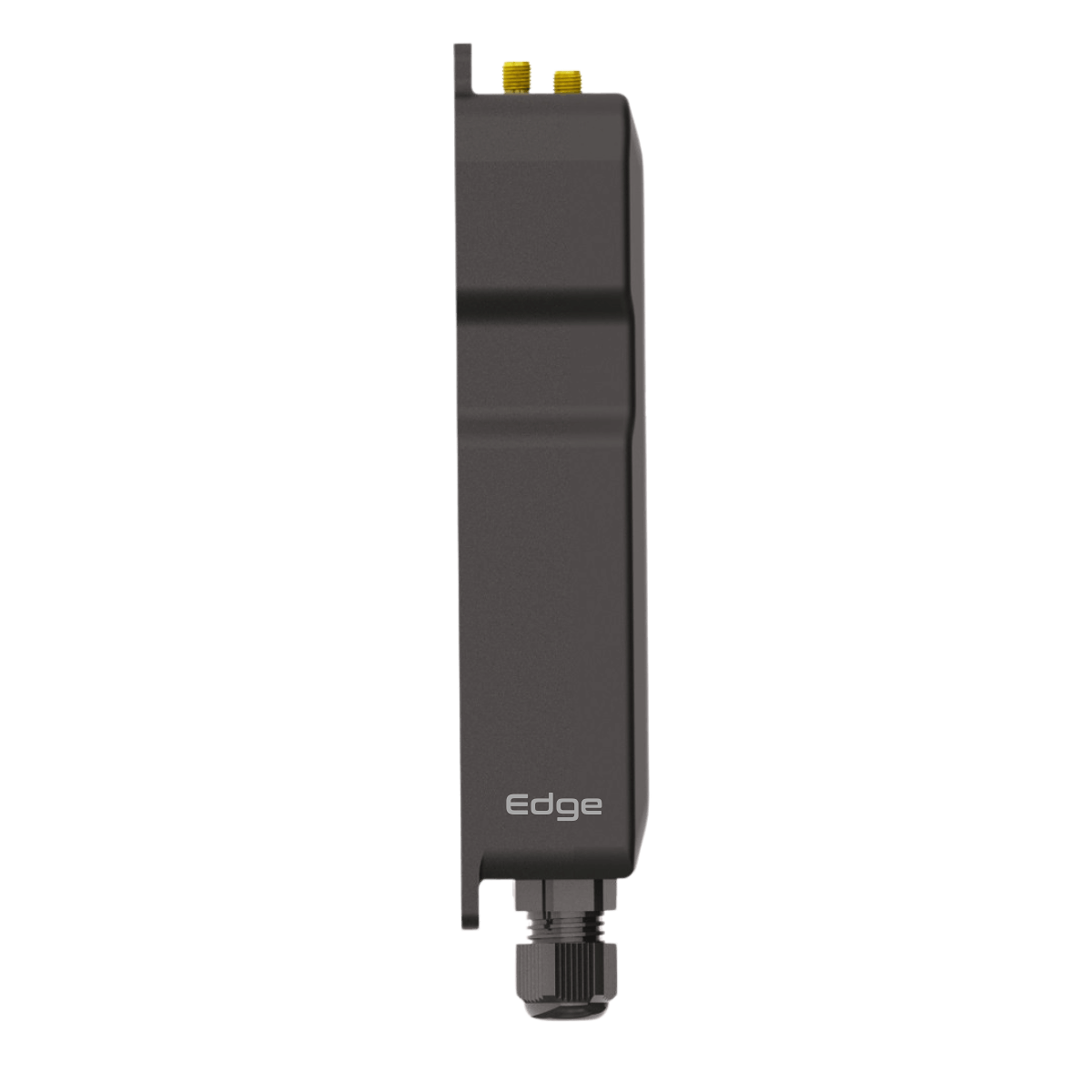

Edge Hub Device
325,00 € excl. VAT
Device “Edge” HUB is a high-performance telematics terminal featuring LTE/2G connectivity, Wi-Fi support and Bluetooth 5.0. With extensive interfaces and a built-in battery, it enables advanced boats and vessels monitoring.
Available Soon
Description
Description
The Device “Edge” HUB model is designed for advanced telematics applications requiring maximum flexibility and connectivity. With dual Nano-SIM slots, external GNSS antenna, 4 GB of eMMC memory and archive capacity of up to 2.5 million points, it provides reliable long-term operation and data security.
The HUB version integrates multiple interfaces including RS485, RS232, CAN & NMEA 2k and 1-Wire for sensor and equipment integration. It also supports Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 for wireless data transfer and peripheral connectivity. With 6 inputs, 4 outputs and an onboard accelerometer, it allows versatile monitoring and control scenarios.
The built-in 600 mAh battery ensures continuous operation during external power interruptions. Compact dimensions (140 × 65 × 30 mm) make it easy to install in a variety of vehicles and equipment. The HUB is ideal for complete data monitoring systems over the boat.
Technical Specifications
Additional information
| Antenna type | External |
|---|---|
| eMMC memory | 4 GB |
| Archive size | up to 170.000 points (flash), up to 2.500.000 points per 1 GB (eMMC) |
| RS485 | 1 |
| RS232 | 1 |
| 1-Wire | 1 |
| CAN | 2 |
| Bluetooth | 5.0 |
| Wi-Fi | 802.11 b/g/n |
| Inputs | 6 |
| Outputs | 4 |
| Cellular Network | 2G / LTE (2G/3G/4G) |
| SIM | 2 Nano |
| Buit-in battery | 600 mAh |
| Dimensions (mm) | 99×66.5×25.5 |
