Core Hub Device
125,00 € excl. VAT

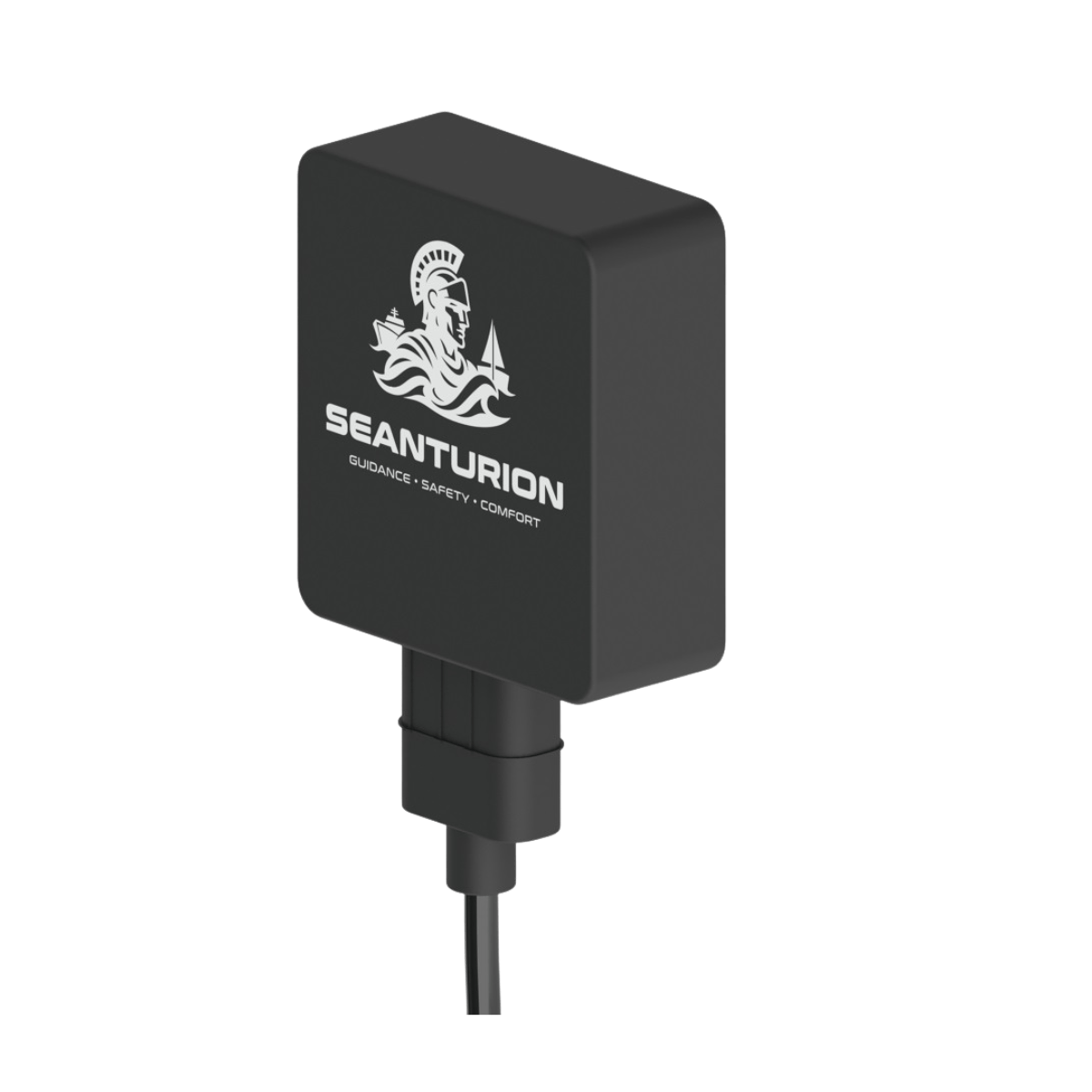

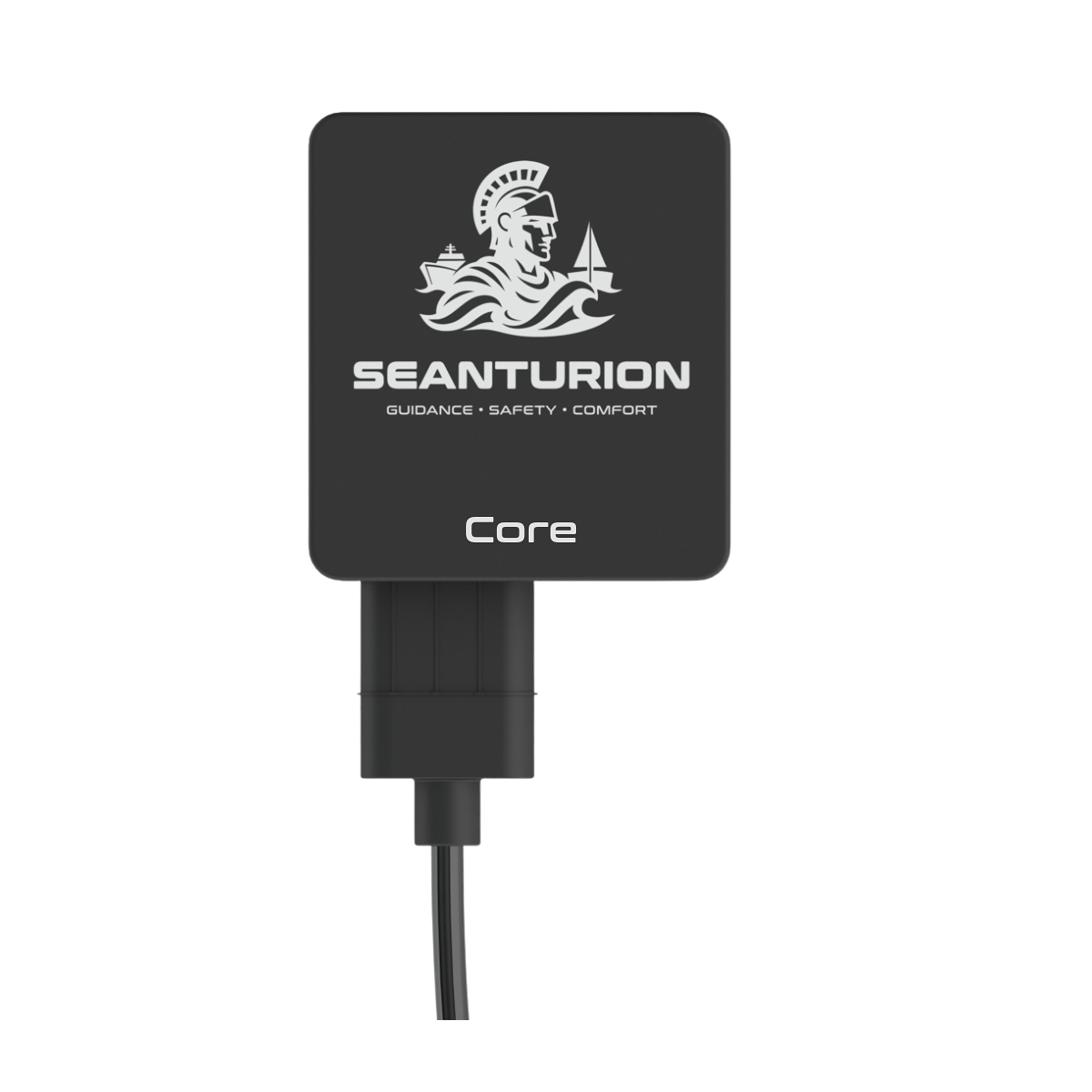

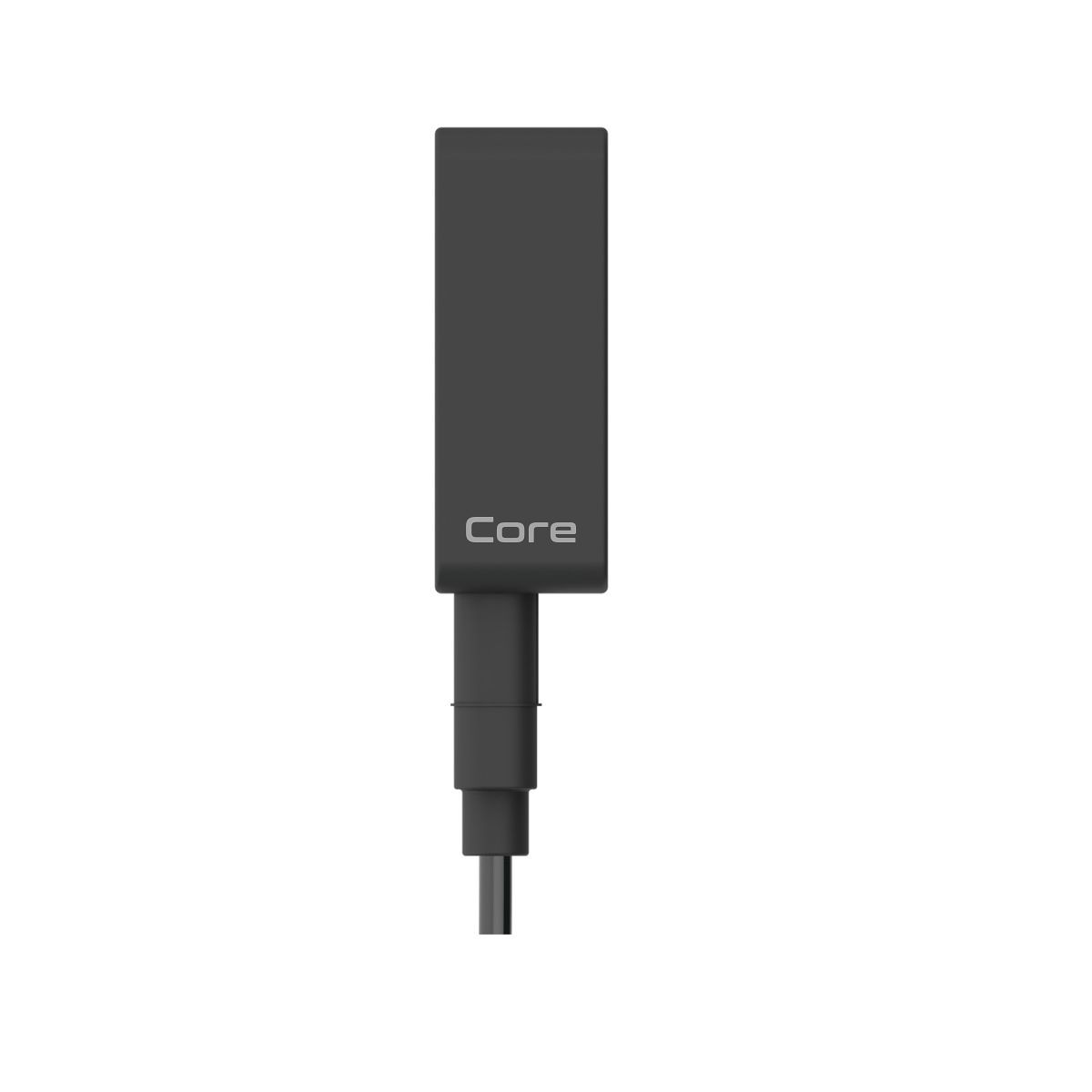

“Core” device is a compact, waterproof 4G LTE tracker with a backup battery. Designed for reliable monitoring of small boats, sailboats and jet-skis.
Available Soon
Description
Description
Device “Core” is a robust 4G LTE Cat 1 tracker built for demanding environments. With an IP67 water- and dust-resistant housing and a 1000 mAh backup battery, it delivers reliable operation even when external power is interrupted.
Equipped with internal GNSS and LTE antennas, the unit supports GPS, GLONASS, Galileo, BeiDou and QZSS satellite systems, ensuring precise location tracking with accuracy up to 2.5 m. Multiple I/O options are available, including digital, analog, negative and impulse inputs, as well as 3 digital outputs, allowing flexible integration with sensors, bilge level sensors, temperature sensors and other equipment.
| Main Highlights |
| 4G LTE Cat 1 + 2G fallback for reliable connectivity |
| Multi-GNSS support: GPS, GLONASS, Galileo, BeiDou, QZSS |
| High-capacity 1000 mAh backup battery for autonomous use |
| Rugged IP67 casing – dustproof and water-resistant |
| Multiple I/O options: 3× Digital Inputs, 2× Analog Inputs, 3× Digital Outputs, 1-Wire |
| Internal high-gain GNSS & LTE antennas |
| Compact & lightweight (91.8 g, 70.5 × 67 × 25.6 mm) |
Technical Specifications
Additional information
| Weight | 0,0918 kg |
|---|---|
| Dimensions | 7,05 × 6,70 × 2,56 cm |
| Connectivity | LTE Cat 1, GSM / GPRS |
| Position accuracy | < 2.5 m CEP |
| Power supply | 10-30 V DC with overvoltage protection |
| Operating temperature | -20 °C to +60 °C (with battery) |
